Architecture Overview

OpenGIN Tracer is built on a Multi-Agent System architecture. This design separates concerns into distinct "Agents" that handle specific stages of the pipeline.

High-Level Workflow​

The pipeline follows a linear progression:

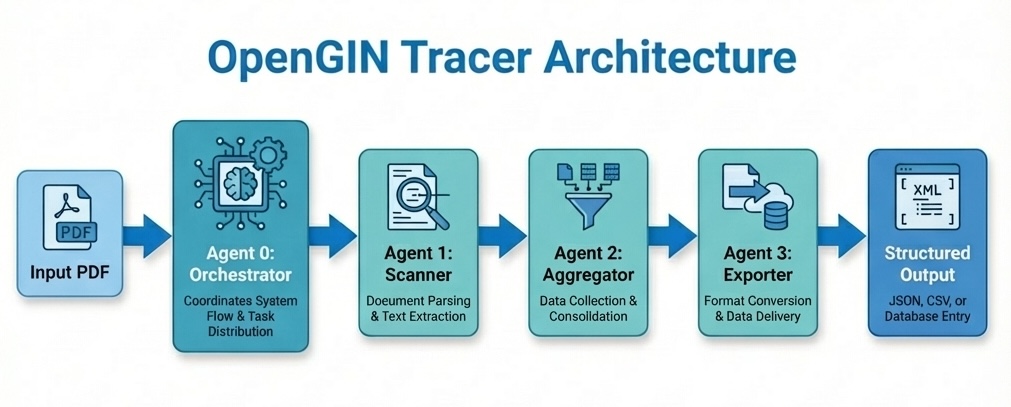

Architecture Diagram

The Agents​

The system comprises four main agents:

  1. Agent 0 (Orchestrator): The master controller. It initiates pipelines, manages the file system, and coordinates the hand-offs between other agents.
  2. Agent 1 (Scanner): The ingestion layer. It splits the PDF document into individual pages and sends them to the GenAI model for extraction.
  3. Agent 2 (Aggregator): The consolidation layer. It takes the individual page results and combines them into cohesive datasets.
  4. Agent 3 (Exporter): The output layer. It formats the aggregated data into the desired output format (e.g., flattened JSON, CSV).

For more details on each agent, see the Agents page.
